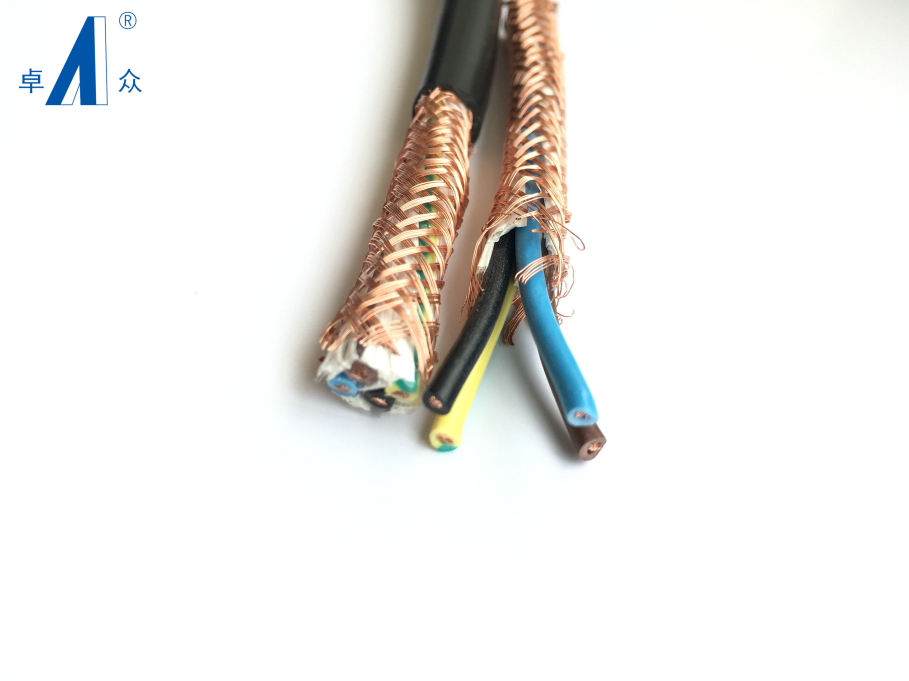

RVVP屏蔽信號線
本產品適用于交流額定電壓300/300V及以下電器、儀表、電子設備及自動化裝置。
尺寸、重量及技術參數
RVVP 300/300V
| 標稱截面(mm2) |
線芯結構 根數/直徑 | 最大外徑 | 參考重量（kg/km） | 20℃導體電阻≤（Ω/km） | ||
|---|---|---|---|---|---|---|
| 2*0.20 | 2X12/0.15 | 5.4 | 33.2 | 92.3 | ||
| 2*0.30 | 2*16/0.15 | 6.2 | 49.3 | 69.2 | ||
| 2*0.40 | 2X23/0.15 | 6.6 | 57.0 | 48.2 | ||
| 2*0.50 | 2X16/0.2 | 6.8 | 29.2 | 39.0 | ||
| 2*0.75 | 2X24/0.2 | 7.2 | 70.7 | 26.0 | ||
| 2*1 | 2X32/0.2 | 8.0 | 86.7 | 19.5 | ||
| 2*1.5 | 2X48/0.2 | 9.0 | 110.4 | 13.3 | ||
| 3*0.2 | 3X12/0.15 | 6.0 | 38.6 | 92.3 | ||
| 3*0.3 | 3X16/0.15 | 6.6 | 48.6 | 69.2 | ||
| 3*0.4 | 3X23/0.15 | 6.8 | 56.7 | 48.2 | ||
| 3*0.5 | 3X16/0.15 | 7.0 | 60.7 | 39.0 | ||
| 3*0.75 | 3X24/0.2 | 7.6 | 73.6 | 26.0 | ||
| 3*1 | 3X32/0.2 | 8.8 | 100 | 19.5 | ||
| 3*1.5 | 3X48/0.2 | 9.8 | 131 | 13.3 | ||
| 4*0.2 | 4X12/0.15 | 6.2 | 45.9 | 92.3 | ||
| 4*0.3 | 4X16/0.15 | 7.0 | 57.5 | 69.2 | ||
| 4*0.4 | 4X23/0.15 | 7.4 | 67.9 | 48.2 | ||
| 5*0.2 | 5X12/0.15 | 6.6 | 52.1 | 92.3 | ||
| 5*0.3 | 5X16/0.15 | 7.6 | 66.6 | 69.2 | ||
| 5*0.4 | 5X23/0.15 | 8.0 | 78.8 | 48.2 | ||
| 6*0.2 | 6X12/0.15 | 7.2 | 59.6 | 92.3 | ||
| 6*0.3 | 6X16/0.15 | 8.0 | 76.6 | 69.2 | ||
| 6*0.4 | 6X23/0.15 | 9.0 | 98.3 | 48.2 | ||
| 7*0.2 | 7X12/0.15 | 7.2 | 64.2 | 92.3 | ||
| 7*0.3 | 7X16/0.15 | 8.0 | 82.3 | 69.2 | ||
| 7*0.4 | 7X23/0.15 | 9.0 | 106.0 | 48.2 | ||
